VS-PTC-IP-DEMO

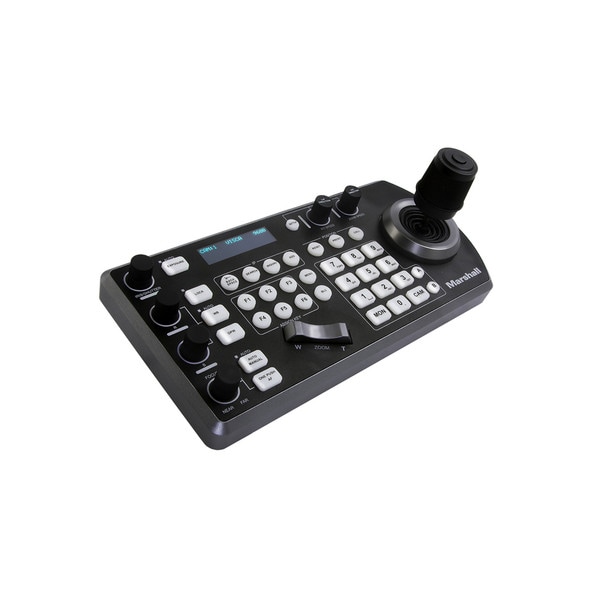

PTZ Camera Controller IP/232/422
UPC # 801813193756
Items | Spec | Remark |
Model Name | VS-PTC-300 | |
Color | Black | |
Display | 3" LCD 360x640 | |
Keypad with backlight | Yes | |
Joystick | 4-axis (Left/Right, Up /Down, Zoom In/Zoom Out) | |
Zoom Control | x1 (Zoom Seesaw Lever) | |
Speed Control | x1 (1 Knob) | Pan/Tilt, Zoom |
Focus Control | x1 (1 Knob) | |
Auto Focus Button | x1 | Switch Mode |
R/B Gain Control | x1 (1 Knob) | |
WB Mode Button | x1 | |
On Push WB Button | x1 | |
IRIS/Shutter/G Control | x1 (1 Knob) | |
Exposure Mode Button | x1 | |
Backlight Button | x1 | |
Assign Button | x2 | Function: Home Power Mute Picture Freeze P/T Reset Picture Flip Picture LR_Reverse Tracking Mode Framing Mode Auto Tracking On Auto Tracking Off Auto Framing On Auto Framing Off Custom Commands |
Preview Button | x1 | |
Camera Button | x7 | |
Search | x1 | |
Cam List | x1 | |
Cam Menu | x1 | |
Preset Call | x1 | |
Preset Save | x1 | |
Tally Light | No actual button. It's the function in the menu. | |
Lock | x1 | |
Numbers | x10 | 0~9 |
Enter | x1 | For Keyboard control |
Delete | x1 | For Keyboard control |
Camera Control | VISCA Over IP/ONVIF / NDI VISCA Address : 1~7 | NDI preset limit: 100 sets |
IP Stream | RTSP/ ONVIF/ NDI|HX2/ NDI|HX3 | For Preview |
Protocol | VISCA/ VISCA Over IP/ ONVIF/ NDI | |
Baud Rate | 2400/4800/9600/38400/115200 bps | For RS232/RS422 |
DC12V In | x1 (EIAJ-04) | |
RS-232 Out | RJ45 x1 | |
RS-422 | RJ45 x1 | |
Ethernet | RJ45 x1 (PoE) | |
Storage temperature | -20 to 60 °C | |
Operating temperature | 0 °C to 40 °C |
